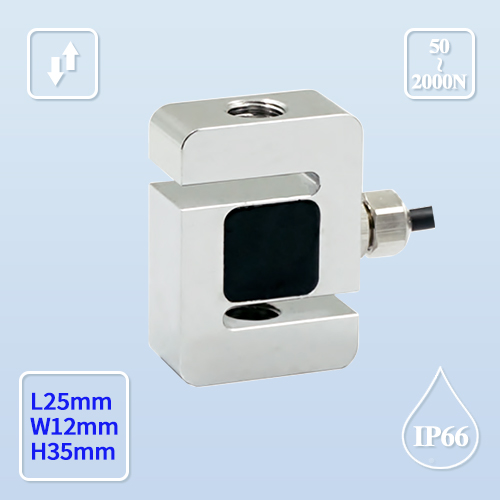

特点与用途/Features & Applications
经典S型结构，综合精度≤0.05%FS
17-4PH不锈钢材质
微型设计便于狭小空间拉压力测量
产品应用:工业生产过程拉压力监测，键盘压力测试，材料拉压力疲劳实验，推拉力计等

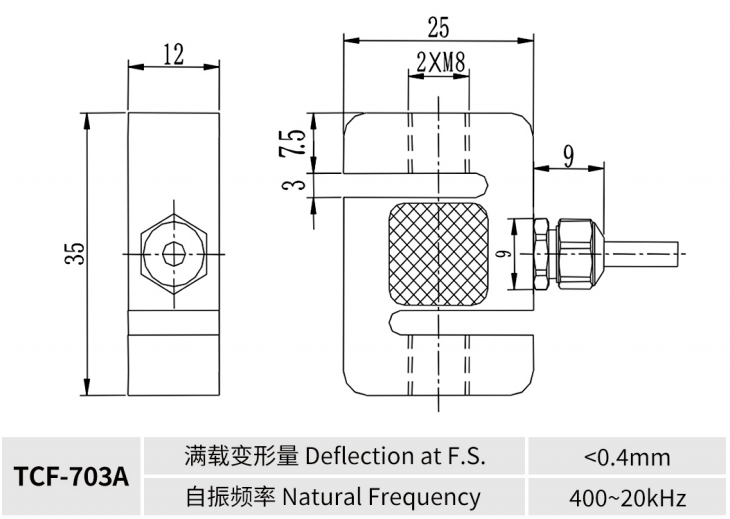

安装尺寸/Mounting Dimension
参数/Specifications 技术指标/Technique
| 额定容量 | Capacity | 50/100/200/500/1000/2000N |
| 输出灵敏度 | Rated output | 2.0±10%mV/V |
| 零点输出 | Zero balance | ±0.05mV/V |
| 非线性 | Non-linearity | 0.05%F.S. |
| 滞后 | Hysteresis | 0.05%F.S. |
| 重复性 | Repeatability | 0.05%F.S. |
| 蠕变(30min) | Creep(30min) | 0.05%F.S. |
| 温度灵敏度漂移 | Temp.effect on output | 0.25%F.S./10℃ |
| 零点温度漂移 | Temp.effect on zero | 0.25%F.S./10℃ |
| 输入电阻 | Input impedance | 385±20Ω |
| 输出电阻 | Output impedance | 350±10Ω |
| 绝缘电阻 | Insulation | ≥5000MΩ/100VDC |
| 激励电压 | Recommended excitation | 5~15V |
| 最大激励电压 | Maximum excitation | 15V |
| 温度补偿范围 | Compensated temp range | -10~60℃ |
| 工作温度范围 | Operation temp range | -20~80℃ |
| 安全超载 | Safe overload | 150%F.S. |
| 极限超载 | Ultimate overload | 200%F.S. |
| 电缆线尺寸 | Cable size | φ3×4000mm |
| 防护等级 | IP Class | IP66 |
