特点与用途/Features & Applications
双法兰结构，安装便捷
17-4PH SS不锈钢材质
形变量小，响应频率高
产品应用:适合用于金属粉末、磁性材料冲压设备;传感器为上下法兰结构，有固定孔，安装便捷。

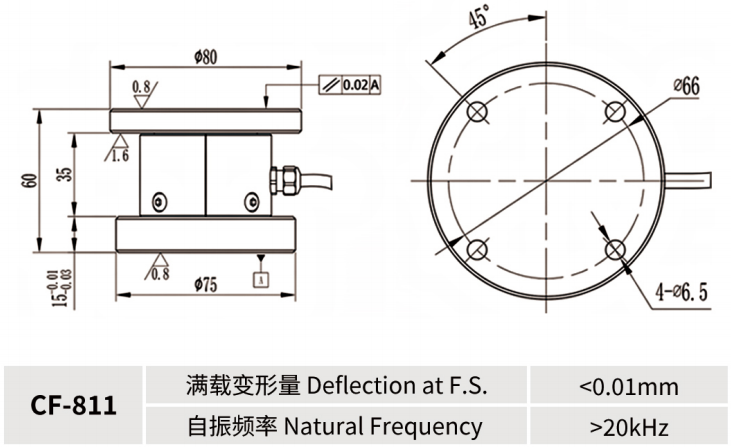

安装尺寸/Mounting Dimension
参数/Specifications 技术指标/Technique
| 额定容量 | Capacity | 1/2/5/10/20/30t |
| 输出灵敏度 | Rated output | 1.5±20%mV/V |
| 零点输出 | Zero balance | ±0.05mV/V |
| 非线性 | Non-linearity | 0.5%F.S. |
| 滞后 | Hysteresis | 0.5%F.S. |
| 重复性 | Repeatability | 0.2%F.S. |
| 蠕变(30min) | Creep(30min) | 0.05%F.S. |
| 温度灵敏度漂移 | Temp.effect on output | 0.05%F.S./10℃ |
| 零点温度漂移 | Temp.effect on zero | 0.02%F.S./10℃ |
| 输入电阻 | Input impedance | 780±20Ω |
| 输出电阻 | Output impedance | 700±10Ω |
| 绝缘电阻 | Insulation | ≥5000MΩ/100VDC |
| 激励电压 | Recommended excitation | 18~33V |
| 最大激励电压 | Maximum excitation | 33V |
| 温度补偿范围 | Compensated temp range | -10~60℃ |
| 工作温度范围 | Operation temp range | -20~80℃ |
| 安全超载 | Safe overload | 200%F.S. |
| 极限超载 | Ultimate overload | 300%F.S. |
| 电缆线尺寸 | Cable size | φ4×7000mm |
| 防护等级 | IP Class | IP65 |
