特点与用途/Features & Applications
双面法兰带螺孔，便于安装
高度低，形变量小
平面加载，拉压力测量
产品应用：高精度设计结构可用于各种工业设备拉压力测量，机器人指尖力检测，线张力的测量等

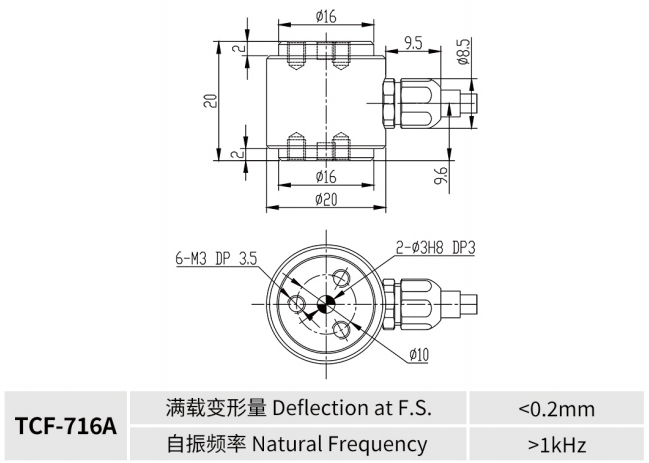

安装尺寸/Mounting Dimension
参数/Specifications 技术指标/Technique
| 额定容量 | Capacity | 10/20/30/50/100N/200N/500N/1000N |
| 输出灵敏度 | Rated output | 1.5±0.5mV/V |
| 零点输出 | Zero balance | ±0.05mV/V |
| 非线性 | Non-linearity | 0.1%F.S. |
| 滞后 | Hysteresis | 0.1%F.S. |
| 重复性 | Repeatability | 0.05%F.S. |
| 蠕变(30min) | Creep(30min) | 0.05%F.S. |
| 温度灵敏度漂移 | Temp.effect on output | 0.05%F.S./10℃ |
| 零点温度漂移 | Temp.effect on zero | 0.05%F.S./10℃ |
| 输入电阻 | Input impedance | 350±10Ω |
| 输出电阻 | Output impedance | 350±10Ω |
| 绝缘电阻 | Insulation | ≥5000MΩ/100VDC |
| 激励电压 | Recommended excitation | 2~12V |
| 最大激励电压 | Maximum excitation | 12V |
| 温度补偿范围 | Compensated temp range | -10~60℃ |
| 工作温度范围 | Operation temp range | -40~120℃ |
| 安全超载 | Safe overload | 150%F.S. |
| 极限超载 | Ultimate overload | 200%F.S. |
| 电缆线尺寸 | Cable size | φ4.8×4000mm |
| 防护等级 | IP Class | IP65 |
