特点与用途/Features & Applications
双面螺纹孔安装
超拉压力设计，便于安装
精度高达0.2%F，可定制高精度
产品应用：小尺寸高精度拉压力测试性能可用于各种有精度需求和狭小空间的力值测控应用

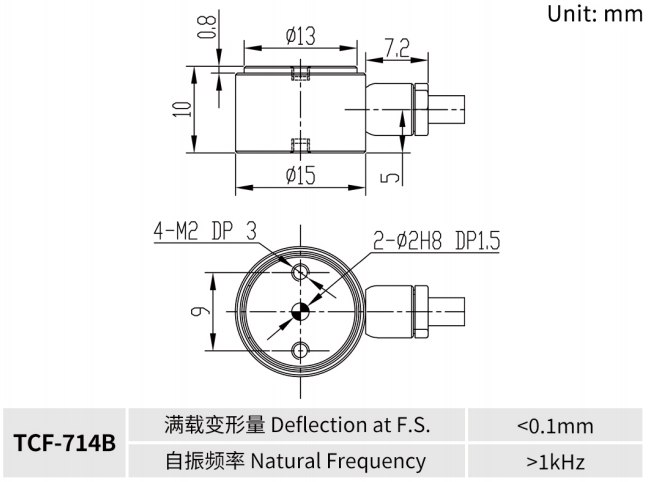

安装尺寸/Mounting Dimension
参数/Specifications 技术指标/Technique
| 额定容量 | Capacity | 10/20/30/50/100N/200N |
| 输出灵敏度 | Rated output | 1.5±50%mV/V |
| 零点输出 | Zero balance | ±0.05mV/V |
| 非线性 | Non-linearity | 0.2%F.S. |
| 滞后 | Hysteresis | 0.1%F.S. |
| 重复性 | Repeatability | 0.1%F.S. |
| 蠕变(30min) | Creep(30min) | 0.1%F.S. |
| 温度灵敏度漂移 | Temp.effect on output | 0.05%F.S./10℃ |
| 零点温度漂移 | Temp.effect on zero | 0.05%F.S./10℃ |
| 输入电阻 | Input impedance | 350±30Ω |
| 输出电阻 | Output impedance | 350±5Ω |
| 绝缘电阻 | Insulation | ≥5000MΩ/100VDC |
| 激励电压 | Recommended excitation | 2~12V |
| 最大激励电压 | Maximum excitation | 12V |
| 温度补偿范围 | Compensated temp range | -10~60℃ |
| 工作温度范围 | Operation temp range | -10~120℃ |
| 安全超载 | Safe overload | 150%F.S. |
| 极限超载 | Ultimate overload | 150%F.S. |
| 电缆线尺寸 | Cable size | φ2.4×4000mm |
| 防护等级 | IP Class | IP54 |
