特点与用途/Features & Applications
中空式设计，便于安装
应变式原理，高度低，应用广泛
螺栓轴向力，各种夹紧力及压力应用的理想选择
产品应用:中空设计的传感器为螺栓预紧力监测或杆状结构周边力测控的最佳选择;
传感器中孔规格所有额定 量程均可匹配，外形尺寸不变

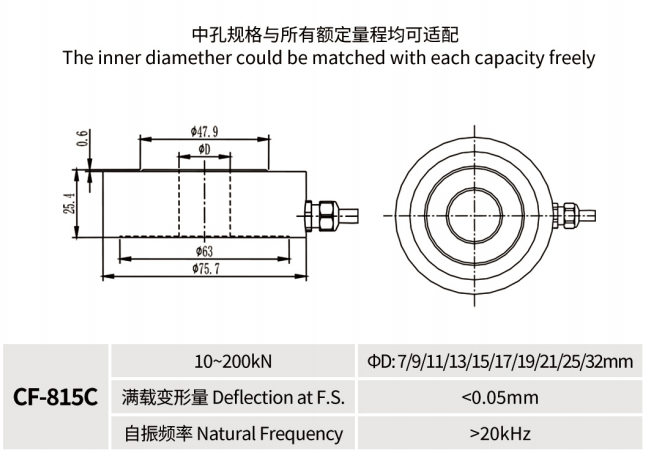

安装尺寸/Mounting Dimension
参数/Specifications 技术指标/Technique
| 额定容量 | Capacity | 10/20/30/50/100/200KN |
| 输出灵敏度 | Rated output | 1.5±10%mV/V |
| 零点输出 | Zero balance | ±0.03mV/V |
| 非线性 | Non-linearity | 0.1%F.S. |
| 滞后 | Hysteresis | 0.1%F.S. |
| 重复性 | Repeatability | 0.05%F.S. |
| 蠕变(30min) | Creep(30min) | 0.05%F.S. |
| 温度灵敏度漂移 | Temp.effect on output | 0.05%F.S./10℃ |
| 零点温度漂移 | Temp.effect on zero | 0.05%F.S./10℃ |
| 输入电阻 | Input impedance | 780±20Ω |
| 输出电阻 | Output impedance | 700±20Ω |
| 绝缘电阻 | Insulation | ≥5000MΩ/100VDC |
| 激励电压 | Recommended excitation | 2~15V |
| 最大激励电压 | Maximum excitation | 15V |
| 温度补偿范围 | Compensated temp range | -10~60℃ |
| 工作温度范围 | Operation temp range | -20~80℃ |
| 安全超载 | Safe overload | 150%F.S. |
| 极限超载 | Ultimate overload | 300%F.S. |
| 电缆线尺寸 | Cable size | φ5×4000mm |
| 防护等级 | IP Class | IP67 |
