特点与用途/Features & Applications

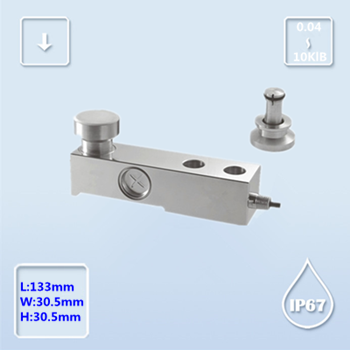

B725称重传感器可满足0.04Kb～10Klb量程范围内多种精度等级的测量。
合金钢材料，内部灌胶密封，防油、防水、耐腐蚀，可适用于各种环境。
单剪切梁结构设计，安装使用方便灵活。
适用于电子平台秤、料斗秤等各类电子称重设备。
安全防爆型产品，可用于恶劣环境及危险性场合。
Made of Alloy Steel，Strong stability, available in capacities as 0.04Klb to 10Klb
Sealed by adhesive inside, oil-proof, waterproof and anti-corrosion, suitable for all kinds of environment.
Single shear beam, used in various automated stamping applications,IP68 protection
Mainly used for packing scales,hopper scale and industrial measuring system
Safe and anti-explosive product, can be used in atrocious environment and hazardous areas
安装尺寸/Mounting Dimension
参数 | Specifications | 技术指标/Technique |
额定容量 | Capacity（Klb） | 0.04-4, 5, 10 |
精度等级 | Accuracy class | C3 |
输出灵敏度 | Rated output | 2.0±0.005 |
零点输出 | Zero balance | ±1.0%F.S. |
非线性 | Non-linearity | ±0.03%F.S. |
滞后 | Hysteresis | ±0.03%F.S. |
蠕变（30min） | Creep(30min) | ≤±0.03%F.S. |
温度灵敏度漂移 | Temp.effect on output | ≤±0.03%F.S./10℃ |
零点温度漂移 | Temp.effect on zero | ≤±0.03%F.S./10℃ |
输入电阻 | Input impedance | 385±10Ω |
输出电阻 | Output impedance | 350±3Ω |
绝缘电阻 | Insulation | ≥5000MΩ/100VDC |
激励电压 | Recommended excitation | 10V |
最大激励电压 | Maximum excitation | 15V |
温度补偿范围 | Compensated temp range | -10~50℃ |
工作温度范围 | Operation temp range | -20~60℃ |
安全超载 | Safe overload | 120%F.S. |
极限超载 | Ultimate overload | 200%F.S. |
电缆线尺寸 | Cable size | Φ5.4×6000mm |
材料 | Material | Alloy Steel |
防护等级 | IP Class | IP67 |
配线图/Wiring Code
