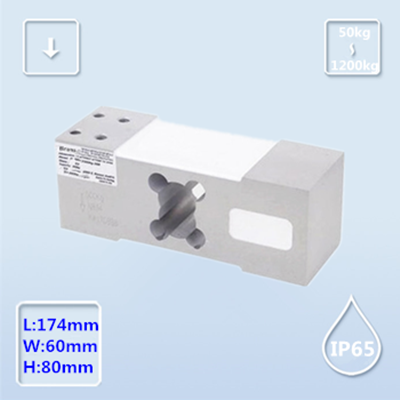

特点与用途/Features & Applications
此称重传感器可满足50kg-600kg 量程范围内的精确测量。
硅橡胶密封,表面阳极化，防腐性能好。
适用于电子计价秤、电子平台秤等各类电子称重设备
最大秤台尺寸(Max.platform size)： 600mm×600mm
Made of aluminum alloy.
This load cells are available in the capacities 50kg to 1200kg.
Alumium construction with parallel beam.
Silicon adhesive sealed, surface anodized and anti-corrosion.
Intergral structure and easy installation.
Suitable for pricing scales, platform scales and other electronic weighing devices.

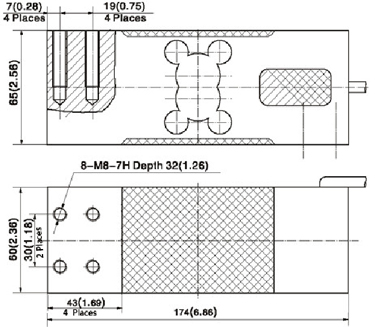

安装尺寸/Mounting Dimension
参数 | Specifications | 技术指标/Technique |
额定容量 | Capacity（kg） | 50,100,150,200,250,300,500,600, 750, 800, 1000,1200kg |
精度等级 | Accuracy class | C3 |
输出灵敏度 | Rated output | 2.0±0.2 mV/V |
零点输出 | Zero balance | ±2.0%F.S. |
最大检定分度数（n max） | Maximum number of verification intervals | 3000 |
最小检定分度值（v min） | Minimum load cell verification interval | 7000 |
综合误差 | Combined error | ±0.02%F.S. |
蠕变（30min） | Creep(30min) | ≤±0.0167%F.S. |
温度灵敏度漂移 | Temp.effect on output | ≤±0.0175%F.S./10℃ |
零点温度漂移 | Temp.effect on zero | ≤±0.02%F.S./10℃ |
输入电阻 | Input impedance | 406±6Ω |
输出电阻 | Output impedance | 350±3Ω |
绝缘电阻 | Insulation | ≥5000MΩ/100VDC |
激励电压 | Recommended excitation | 5~15V |
最大激励电压 | Maximum excitation | 18V |
温度补偿范围 | Compensated temp range | -10~40℃ |
工作温度范围 | Operation temp range | -35~65℃ |
安全超载 | Safe overload | 150%F.S. |
极限超载 | Ultimate overload | 300%F.S. |
电缆线尺寸 | Cable size | Φ6×3000mm |
材料 | Material | Aluminium |
防护等级 | IP Class | IP65 |
最大秤盘尺寸 | Max.platform size | 600mm×600mm |

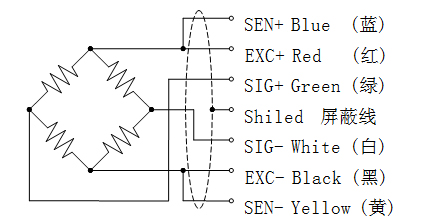

配线图/Wiring Code
