特点与用途/Features & Applications
合金钢或不锈钢材料
精度高、抗偏载能力强
安装附件为压头和钢球结构，容易安装，可自动复位和调心
经聊好的防潮密封措施，适应恶劣的工作环境
适用于各种电子汽车衡、轨道衡、料斗秤及各种工业称重系统
Made of alloy steel or stainless steel.
High accuracy, high side load tolerance and shock resistance
Unique bridge structure, cup and steel ball mounted self-resetting and certering, Easy to install
Moistureproof sealed, ideal for hostile environment
Mainly used for electronic truck scales, electronic railroad scales, hopper scales and other industrial weighing systems.

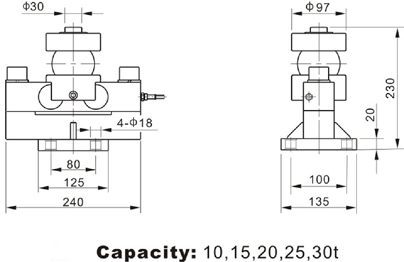

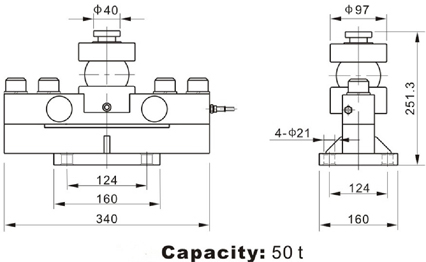

安装尺寸/Mounting Dimension
参数 | Specifications | 技术指标/Technique |
额定容量 | Capacity | 10,15,20,25,30,50T |
精度等级 | Accuracy class | C3 |
输出灵敏度 | Rated output | 2.0±0.005mV/V |
零点输出 | Zero balance | ±1.00%F.S. |
非线性 | Non-linearity | ±0.03%F.S. |
滞后 | Hysteresis | ±0.03%F.S. |
重复性 | Repeatability | ±0.01%F.S. |
蠕变（30min） | Creep(30min) | 0.02%F.S. |
温度灵敏度漂移 | Temp.effect on output | 0.02%F.S./10℃ |
零点温度漂移 | Temp.effect on zero | 0.02%F.S./10℃ |
输入电阻 | Input impedance | 760±10Ω |
输出电阻 | Output impedance | 700±5Ω |
绝缘电阻 | Insulation | ≥5000MΩ/100VDC |
激励电压 | Recommended excitation | 10V |
最大激励电压 | Maximum excitation | 15V |
温度补偿范围 | Compensated temp range | -10~50℃ |
工作温度范围 | Operation temp range | -20~60℃ |
安全超载 | Safe overload | 120%F.S. |
极限超载 | Ultimate overload | 200%F.S. |
电缆线尺寸 | Cable size | Φ6×12000mm |
材料 | Material | Alloy or Stainless Steel |
防护等级 | IP Class | IP67 |

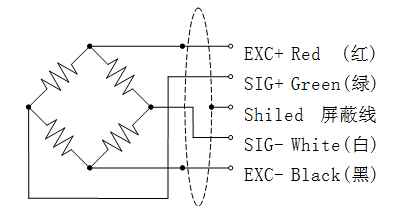

配线图/Wiring Code
